WINDOWS

ELVIAL W59 SI².ML

Imagine a place where novelties and custom co -exist in a wonderful accord, where everything is measured by how it achieves balance between antagonistic elements and where what you imagine can be realized and shared with a community. This is the inspiration we drew upon to create W59 SI².ML.
W59 SI².ML
5
9
THE DESIGN
THE DESIGN
THE DESIGN
THE DESIGN
THE DESIGN

This multitasking line is an excellent choice for projects that come together as an assembly of different elements to answer to various functional demands but still need to have a cohesive aesthetic identity. This protean quality renders it a best seller among its peers.

Attention to details

THE PREEMINENT SHAPE

The fine line around this profile is a connecting element; a link that shows our evolution and our constant quest to create solutions that cover various lifestyle choices and various aesthetic orientations. This one is especially designed for those who enjoy a clear manifestation of limit and a visual affirmation of coziness.

JOINED BY AESTHETICS

This could be a lesson in tailoring. The glass profile and the shading profile are fitted on the same frame. The construction volume is minimized and the visual impression is upgraded, while the system's durability remains intact. The result is this solution which you will enjoy for many years to come.

EXCEL AT THE FUNDAMENTALS

Highly durable, easy to fit and utterly reliable. These are the fundamentals upon which all our solutions are built. This solution high scores in all fundamentals and smooths the process of installation, which is a challenge for angular constructions. It is also more than adequate as far as the design is concerned, being an ELVIAL product.

EXTRA FEATURES

Form follows function, they said. We glorified form by concealing the functional components.

Hinges to open or tilt that go undetected.

Handles so sophisticated that render grace to industrial design.
Elvial - THE DESIGN

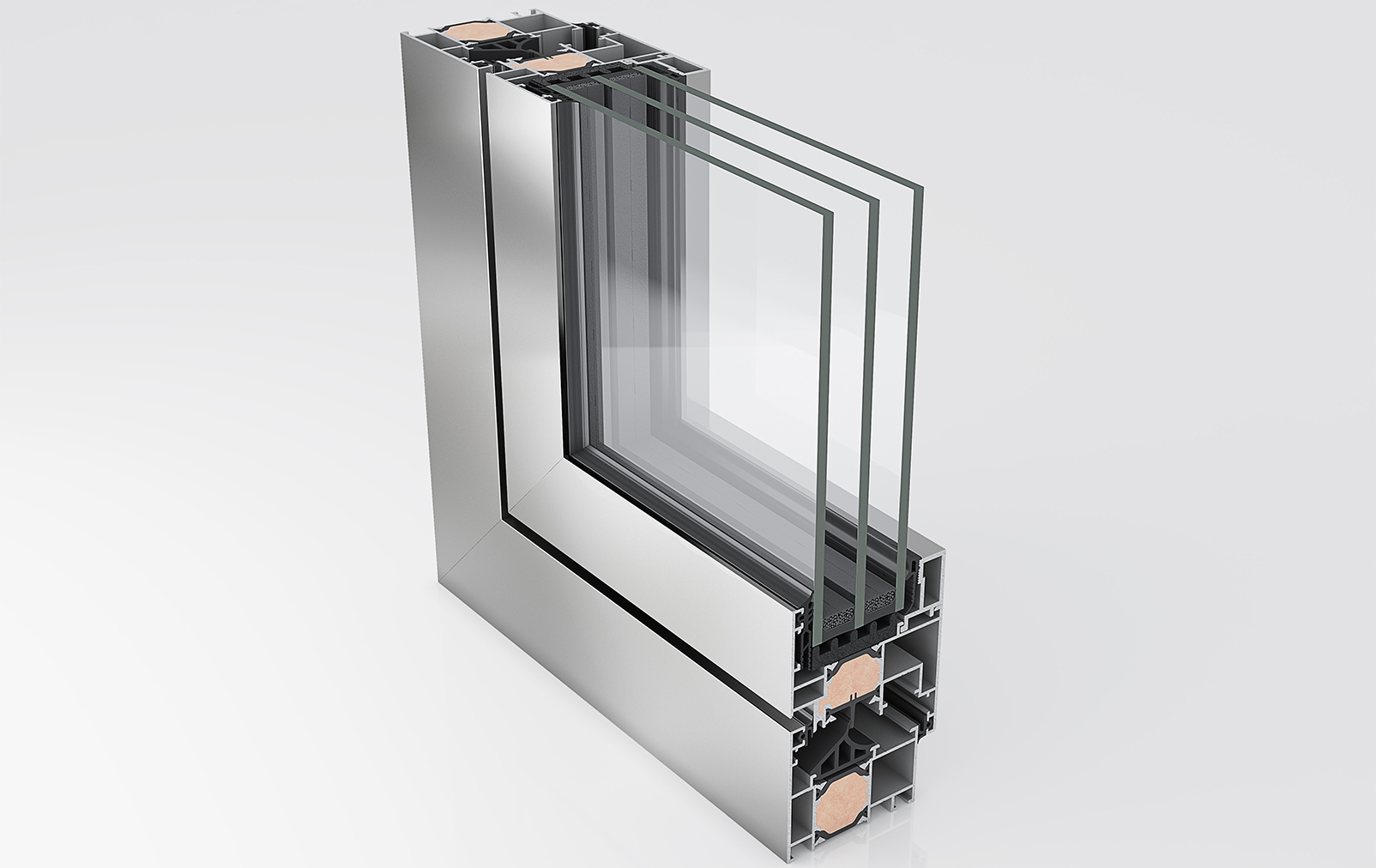

THE TECHNOLOGY

The climate in the Mediterranean is so beautiful, songs have been written about it. The region enjoys many sunny days during the year. In cases this does not happen the ELVIAL W59 SI² will make sure you don’t feel it. In your space it will always be spring.

The Thermal Insulation

You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.
  • ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY

    The innovation, ELVIAL I² Technology, is applied on all system’s profiles. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system’s energy performance [Uf] by up to 38%.
    Learn more about ELVIAL I² Innovation.
  • 24MM INSULATING BARS

    Wide insulating bars of 24mm, are applied to all system profiles, offering high thermal insulation levels and extra sense of amenity.
  • GLAZING GASKETS WITH FINS

    Glazing gaskets with fins minimize the heat transfer under the glazing zone.
  • FOAM INSULATING PROFILE

    Foam insulating profile is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.

The Advanced Sealing System

We have developed the Advanced Sealing System to water-proof any construction. Vulcanization and assembly render all parts of the window impermeable.
  • OPTIMAL 3-LEVEL WATERPROOFING

    Optimal 3-level waterproofing with specially designed EPDM and co-extruded gaskets.
  • EPDM GASKET CORNERS

    Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions.
  • EPDM SPECIMEN FOR ADJOINING PROFILE END CUP

    Double sash typologies are fitted with a special EDPM component that connects the mullion with the central gasket. The construction is flawlessly adjoined and practically impermeable even in extreme conditions.
  • DRAINAGE CHANNELS

    All system profiles are equipped with special drainage channels to prevent the water flow to the inner part of the window.

Durability For A Life Time

It's details like this that fulfill the highest requirements in terms of durability. As time puts this profile to its test, you will enjoy its endurance and benefits.
  • JOINT CORNERS WITH RECESSES

    The joint corners have specially designed recesses to fasten the hinge pins and absorb the weight of the glazing. This safeguards the smooth operation and functionality of the window for a lifetime.
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are THREE energy level variables to this product so you can devise the best answer to any demand.
Uf ≥ 2.3 W/m²K
Uf ≥ 2.3 W/m²K
Uf ≥ 2.0 W/m²K
Uf ≥ 2.0 W/m²K
Uf ≥ 1.9 W/m²K
Uf ≥ 1.9 W/m²K
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are THREE energy level variables to this product so you can devise the best answer to any demand.
Uf ≥ 2.3 W/m²K
Uf ≥ 2.3 W/m²K
Uf ≥ 2.0 W/m²K
Uf ≥ 2.0 W/m²K
Uf ≥ 1.9 W/m²K
Uf ≥ 1.9 W/m²K
Design
System Depth
58.6mm
Min Face Height
Frame-Sash
94.1mm
Min Face Height
Threshold-Sash
107.5mm
Min Face Width
Middle Mullion
155.7mm
PROPERTIES
Max Sash Height
2.300mm
Max Sash Width
1.000mm
Max Sash Weight
130kg
Max Glass thickness
46mm
Uf Value (≥)
1.8 W/m²K
Air Permeability
Class 4
Water Tightness
E1650
Wind Load Resistance
C5/B5
Sound Reduction
40dB
SINGLE SASH FIXED WINDOW

SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW

SINGLE SASH TILT & TURN WINDOW

TOP HUNG WINDOW

DOUBLE SASH OPENING WINDOW

DOUBLE SASH TILT & TURN WINDOW

DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL WITH TILT & TURN WINDOW
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
SINGLE SASH FIXED WINDOW

SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW

SINGLE SASH TILT & TURN WINDOW

TOP HUNG WINDOW

DOUBLE SASH OPENING WINDOW

DOUBLE SASH TILT & TURN WINDOW

DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
GET ACCESS
Are your Interested for more technical information about this product? Contact us and gain access to Technical Catalogue, DWG, BIM, Test Reports.
