ESSENCE FD77

When making an insulated folding door we had to strike the perfect balance; respect the requirements of extra large openings by creating an extended variety of solutions that combine deft design with indisputable quality in all the functional elements. The result is a solid and handsome system that will run smoothly for years to come.
ESSENCE FD77
7
7
THE DESIGN
THE DESIGN

We combined design excellence with unparalleled quality in functional elements. We developed a wide range of such solutions to meet the demands of very large openings.

ATTENTION TO DETAIL

UNOBSTRUCTED TRANSIT

Open passage. With its low thresholds application, with a visible height of just 3mm and 7mm, ESSENCE FD77 is an ideal solution for people with physical challenges and children. Move freely.

EXPANSIVE OPENINGS

Imagine openings that reach  3500mm. You are free to create them. The meticulously studied reinforcements ensure the system's prime static strength even against extreme weather.

GHOST GLAZING GASKETS

The appliance of Ghost glazing gaskets minimizes the visible facet and renders the gaskets practically invisible. Once more, aesthetic prevails and functionality is not compromised.

CONCEALED WATER DRAINAGE SYSTEM

Υοu never lower the eyes. But we had to provide, just in case. The system that covers threshold water drainage is another feature that upgrades the construction both aesthetically and functionally.
UNOBSTRUCTED TRANSIT
EXPANSIVE OPENINGS
GHOST GLAZING GASKETS
CONCEALED WATER DRAINAGE SYSTEM

EXTRA FEATURES

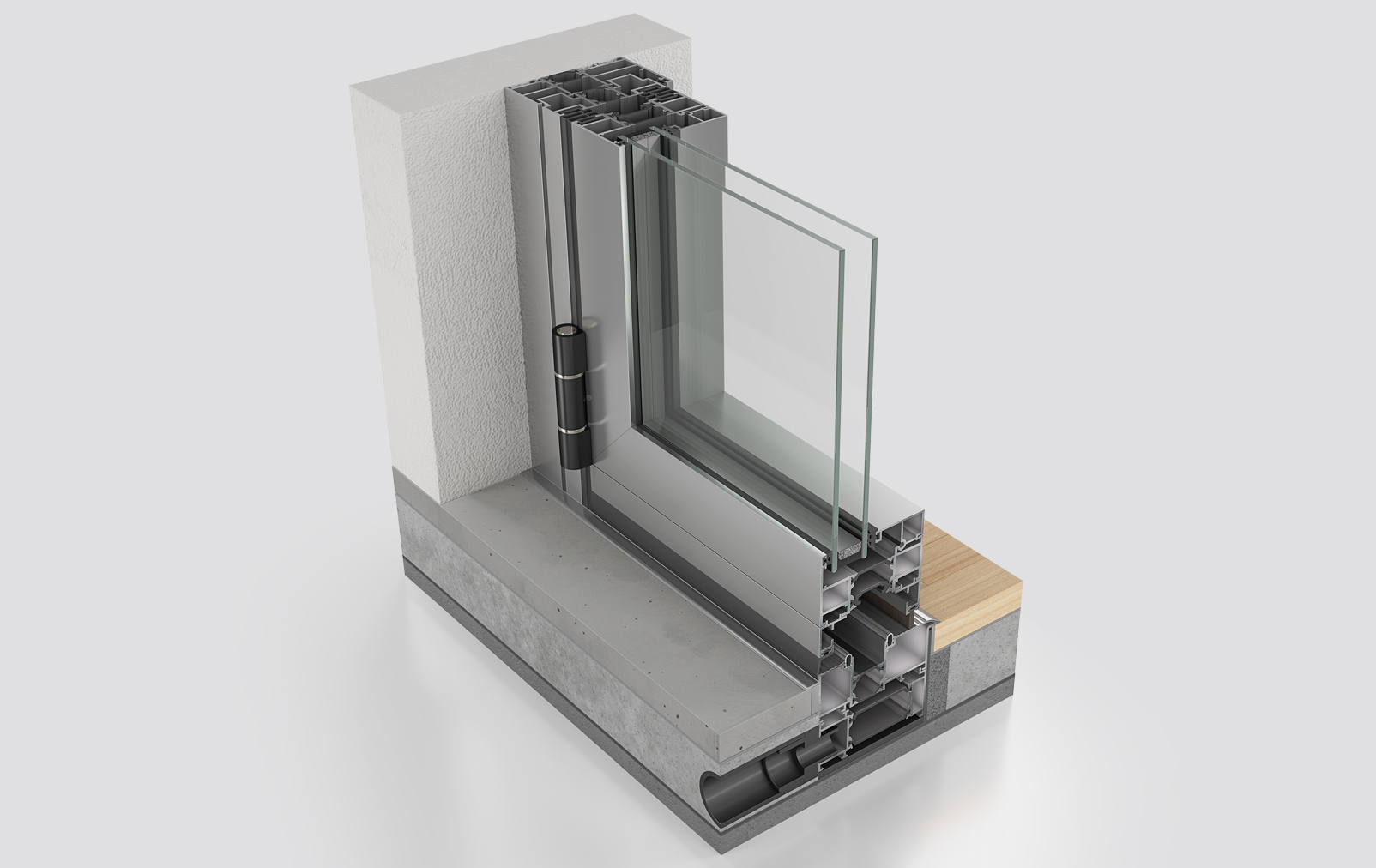

HEAVY DUTY ROLLER HINGES

High strength roller hinges that offer stability, safety and smooth movement even in the widest openings. Ideal for long-term operation, without problems such as sash hanging. Their special design prevents lifting of the sash and, accordingly, intrusions.

SPECIALLY DESIGNED MINIMAL HANDLE AND PULL HANDLE

Aesthetics and functionality are combined in the specially designed handle by ELVIAL and the intermediate pull handles with or without integrated hinge for easy locking, depending on the direction of opening.

SINGLE OR DOUBLE DOOR HANDLE

Handles are so sophisticated that render a unique style to any architectural design. Function and appearance are in perfect harmony.

MULTIPLE LOCKING POINTS

This aluminum system was designed to let ample light in and allow its users to enjoy it. Light and users only. So we designed it to ensure high anti-burglar protection, with 3 locking points on the door.
HEAVY DUTY ROLLER HINGES
SPECIALLY DESIGNED MINIMAL HANDLE AND PULL HANDLE
SINGLE OR DOUBLE DOOR HANDLE
MULTIPLE LOCKING POINTS

THE OPTIONS

FOLDING DOORS

ANGULAR FOLDING DOORS

7 sashes + 1 door with an inward opening

FOLDING DOORS

Folding doors are very popular in modern architectural designs. The ability to fully open and fold into a small size allows them to create large, open surfaces. This makes their operation excellent in both residential and professional premises. Natural airflow and an increase in natural light are also few of their many advantages.

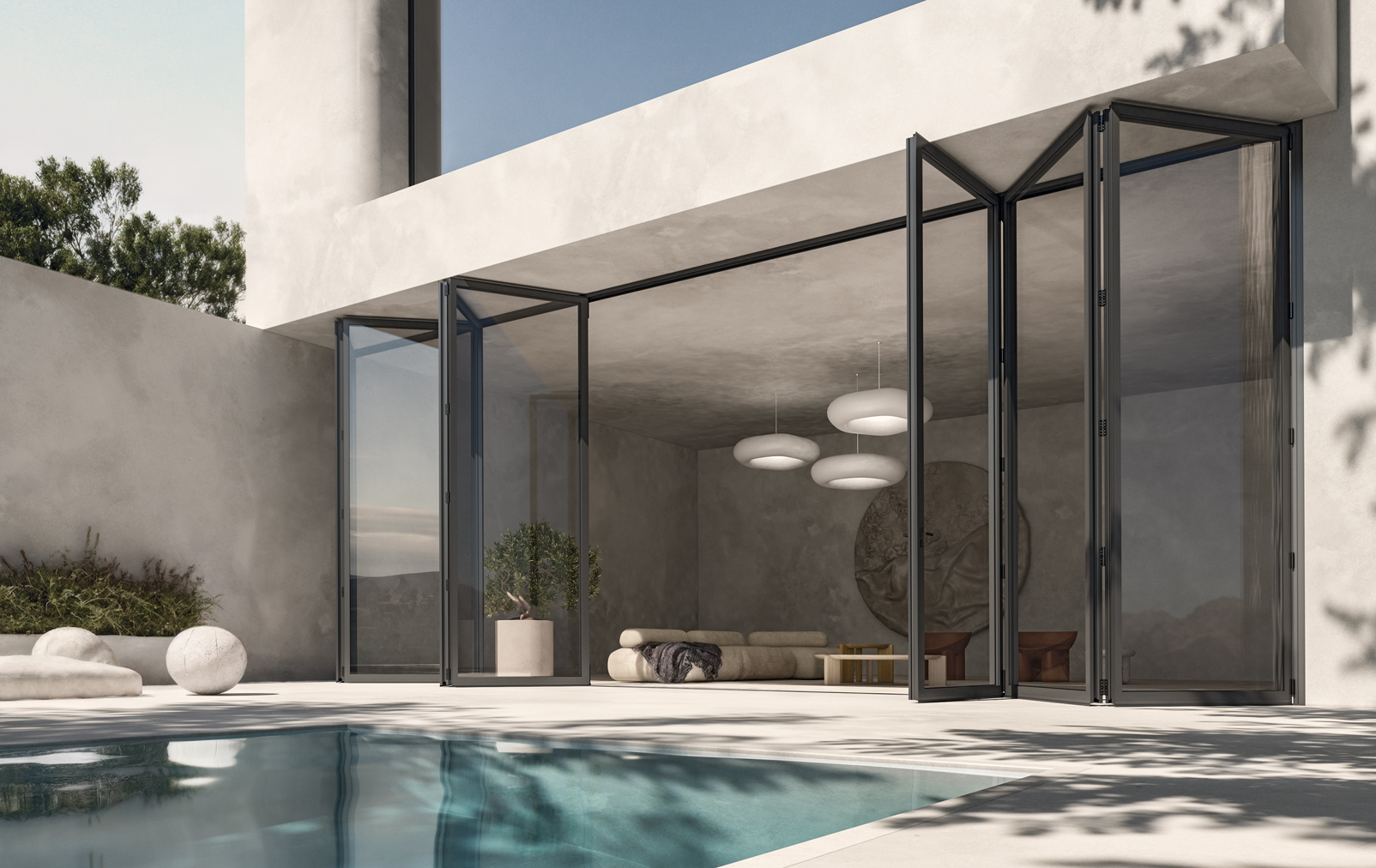

4 sashes + 3 sashes with an outward opening

FOLDING DOORS

Folding doors are very popular in modern architectural designs. The ability to fully open and fold into a small size allows them to create large, open surfaces. This makes their operation excellent in both residential and professional premises. Natural airflow and an increase in natural light are also few of their many advantages.

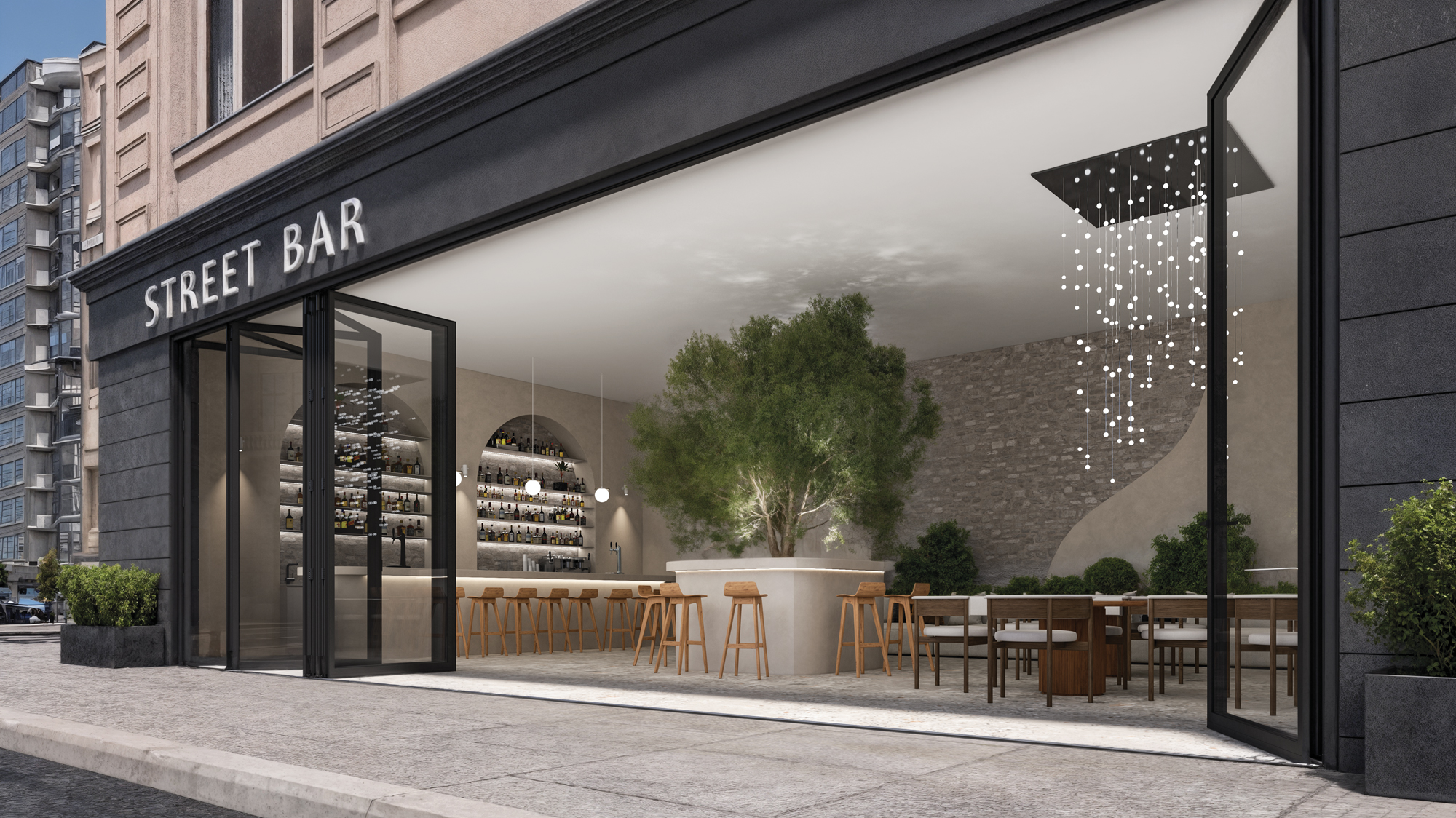

7 sashes + 1 door with an inward opening

4 sashes + 3 sashes with an outward opening

3-sash angular with an inward opening

ANGULAR FOLDING DOORS

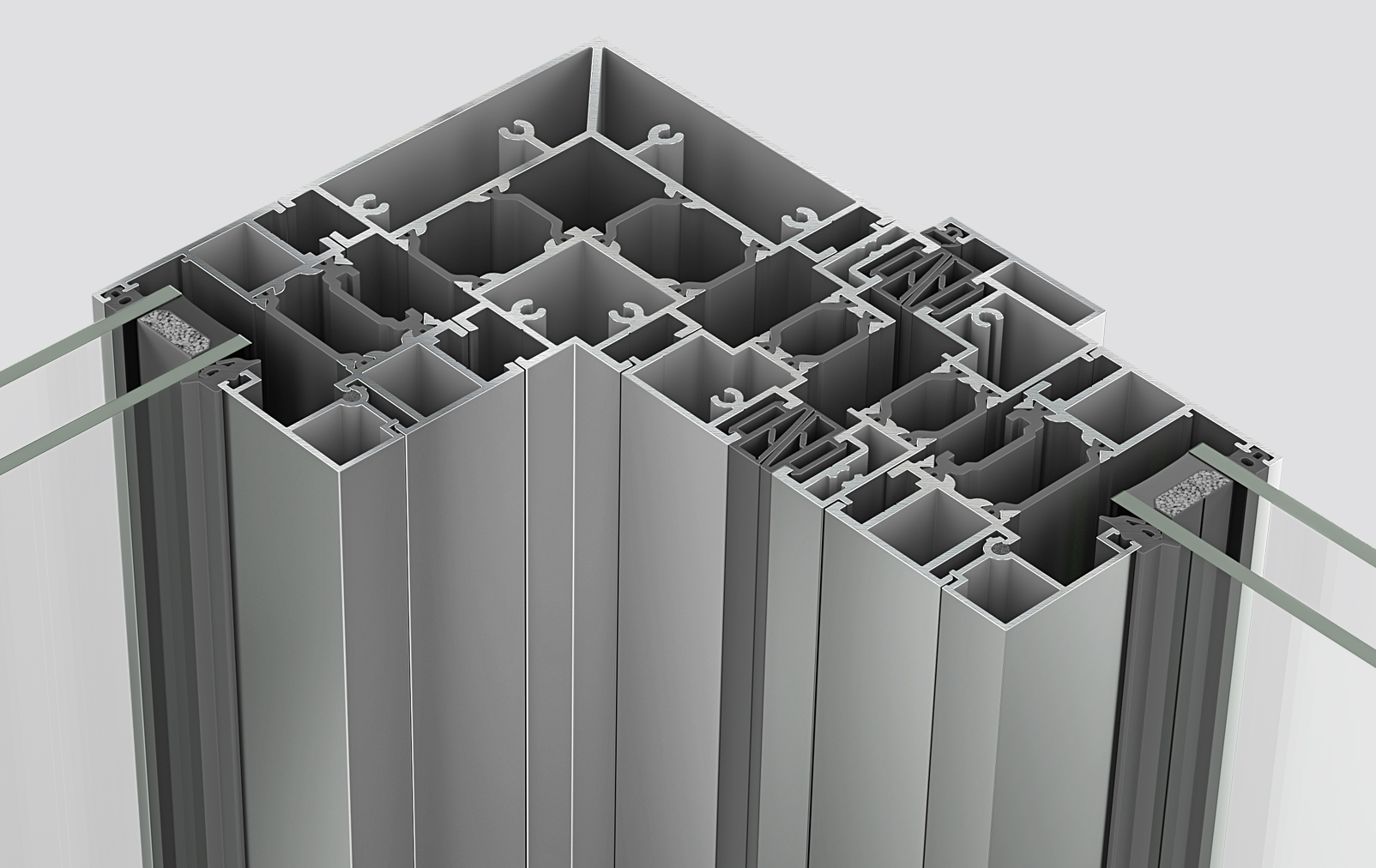

Angular folding doors are an extremely impressive and practical solution for creating open and spacious connections between the interior and exterior. They offer a contemporary look and maximize views and natural brightness, offering an open and airy atmosphere.

3-sash angular with an inward opening

THE TECHNOLOGY

An infinite visual that prompots phantastic voyages and light that elevates. ESSENCE FD77 allows you to enjoy the best of ample openings. The challenges of thermal insulation, security and watertightness are not an issue, thanks to ELVIAL technologies.

THERMAL INSULATION

An expansive opening and an interior of equal standards. This aluminium system was created to be the boundary, the line of defence of the interior against the challenges presented by the weather elements. We fitted it accordingly.

  • UP TO 32MM INSULATING BARS (en)

    Insulating bars with 25% glass reinforcement of 32mm in sash and 24mm in frames and thresholds are applied, offering high thermal insulation levels and extra rigidity.

  • CO-EXTRUDED GASKET

    Co-extruded gasket is used in the perimetrical area of the frame, improving energy performance.

THE ADVANCED SEALING SYSTEM

Another challenge for aluminium systems designated for extra large openings has been tackled thanks to sealing technologies that have been tested and proven to be not just adequate but superefficient.

OPTIMAL 2-LEVEL WATERPROOFING

Optimal 2-level waterproofing with specially designed EPDM and co-extruded gaskets.

EPDM GASKET CORNERS

EPDM gasket corners ensure maximum sealing, even at extreme weather conditions.

EPDM END CAPS AND EXTENSIONS FOR GASKETS

Τhe joining of the sashes is no longer a weak point. We have it sealed using EPDM end caps and gasket extensions than ensure continuity in the perimetrical waterproofing.

OPTIMIZED WATERTIGHTNESS

Q-LON in the perimetrical area of the frame, with the use of heavy duty rollers.

WATERTIGHT AND SUPER CLEAN

Perimetrical socket channel for the glazing bead, with an elevation difference from the outer side of the sash, which prevents water entrapment.

CONCEALED WATER DRAINAGE SYSTEM

Υοu never lower the eyes. But we had to provide, just in case.The system that covers threshold water drainage is another feature that upgrades the construction both aesthetically and functionally.

DURABILITY FOR A LIFE TIME

With ESSENCE FD77 the weather is reduced to a scenery of the stories that shape your life. You have just upgraded your living.

SMOOTHER ROLLING

Stainless steel rail with improved design & reinforced thickness, which ensures the impeccable functionality of the construction even at demanding glazing loads.

EFFICIENT PROTECTION

New generation joint corners with side caps, in all moving parts, which lead the two-component glue along the joint point and completely cover the chambers.

MAXIMUM STRENGTH

There are various reinforcements available in this system designed to match the wind pressure requirement you will prescribe.

MULTIPLE LOCKING POINTS

This aluminium system was designed to let ample light in and allow its users to enjoy it. Light and users only. So we designed it to ensure high anti-burglar protection, with 3 locking points on the door.
Design
Sash Depth
77mm
Min Face Height
Frame-Sash
94mm
Min Face Height
Threshold-Sash
84mm
Min Face Width
Middle Mullion
108mm
Properties
Max Sash Height
3500mm
Max Sash Width
1300mm
Max Sash Weight
230kg
Max Glass Thickness
52mm
Uf Value (≥)
2.1 W/m²K
Uw Value (=)
1.66 W/m²K
Air Permeability
Class 3
Watertightness
7A
Resistance to Wind Load
C2
3 SASHES
3 SASHES & DOOR
5 SASHES
5 SASHES & DOOR
7 SASHES
7 SASHES & DOOR
3 & 3 SASHES ANGULAR
2 SASHES
2 SASHES & DOOR
4 SASHES
4 SASHES & DOOR
6 SASHES
6 SASHES & DOOR
8 SASHES
3 & 3 SASHES
5 & 3 SASHES
2 & 2 SASHES
4 & 2 SASHES
4 & 4 SASHES
6 & 2 SASHES
3 & 2 SASHES
4 & 3 SASHES
5 & 2 SASHES
All typologies can be constructed with inward or outward opening

ELVIAL aluminium folding systems open up your space to natural light, offering a complete connection with the outdoor environment. Designed to fold and slide away with ease, they allow air and light to flow freely into your space, creating an open and effortless dialogue between indoors and outdoors.
The clean lines of aluminium, combined with its exceptional durability, ensure flawless operation and refined aesthetics for years to come, much like sliding aluminium systems.
Ease of use and distinctive design come together to offer a solution that not only meets your needs, but also enhances the overall architectural experience with every opening.

Folding systems are the ideal choice for aluminium frames in projects that require large glass surfaces and unrestricted openings.
In residential properties, they create a seamless connection between indoor and outdoor areas, forming open, bright spaces for beautiful everyday moments. Aluminium folding systems allow for a full opening, enhancing interaction with the surrounding environment.
Discover corner folding systems, an exceptionally impressive solution for commercial spaces such as hotels or restaurants, where maximizing natural light and creating a spacious, open environment are key priorities.
