ESSENCE W67ST HI².ML
The astragal bars on this profile are an additional design element that offers versatility and depth to your aesthetic approach. The features and technologies will offer comfort and satisfaction to the users of your project. ELVIAL happily guarantees all.
6
7

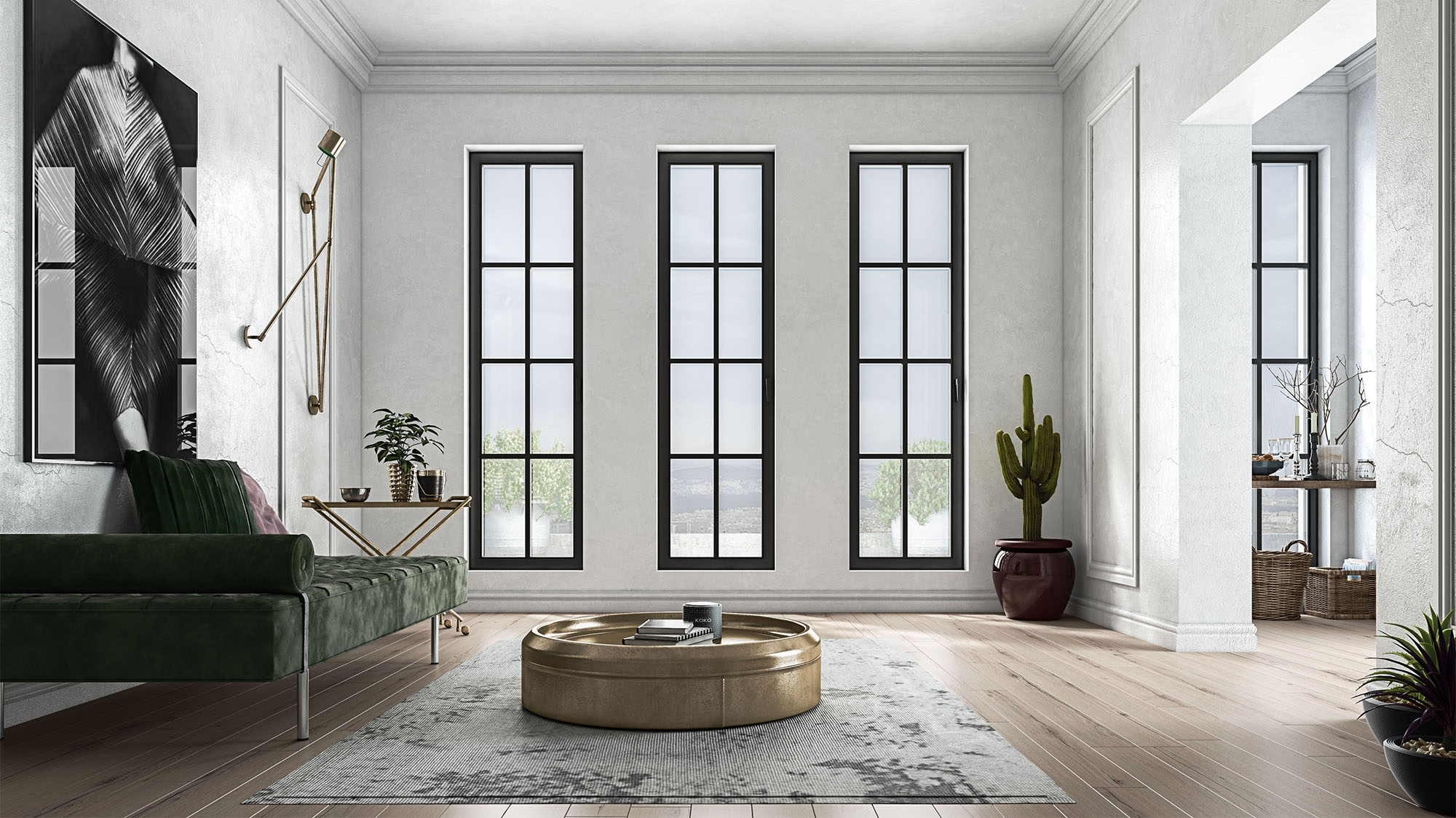

THE DESIGN
Letting the light in is always a priority. The slim frame and the expertly fitted astragal bars allow maximum influx. Then the notion of light shifts from a visual trait to a feeling. Illumination turns into brilliance. Brilliance is self-evident whatever the architectural style you chose might be -minimal, industrial or retro.
Attention to detail
EXTRA FEATURES

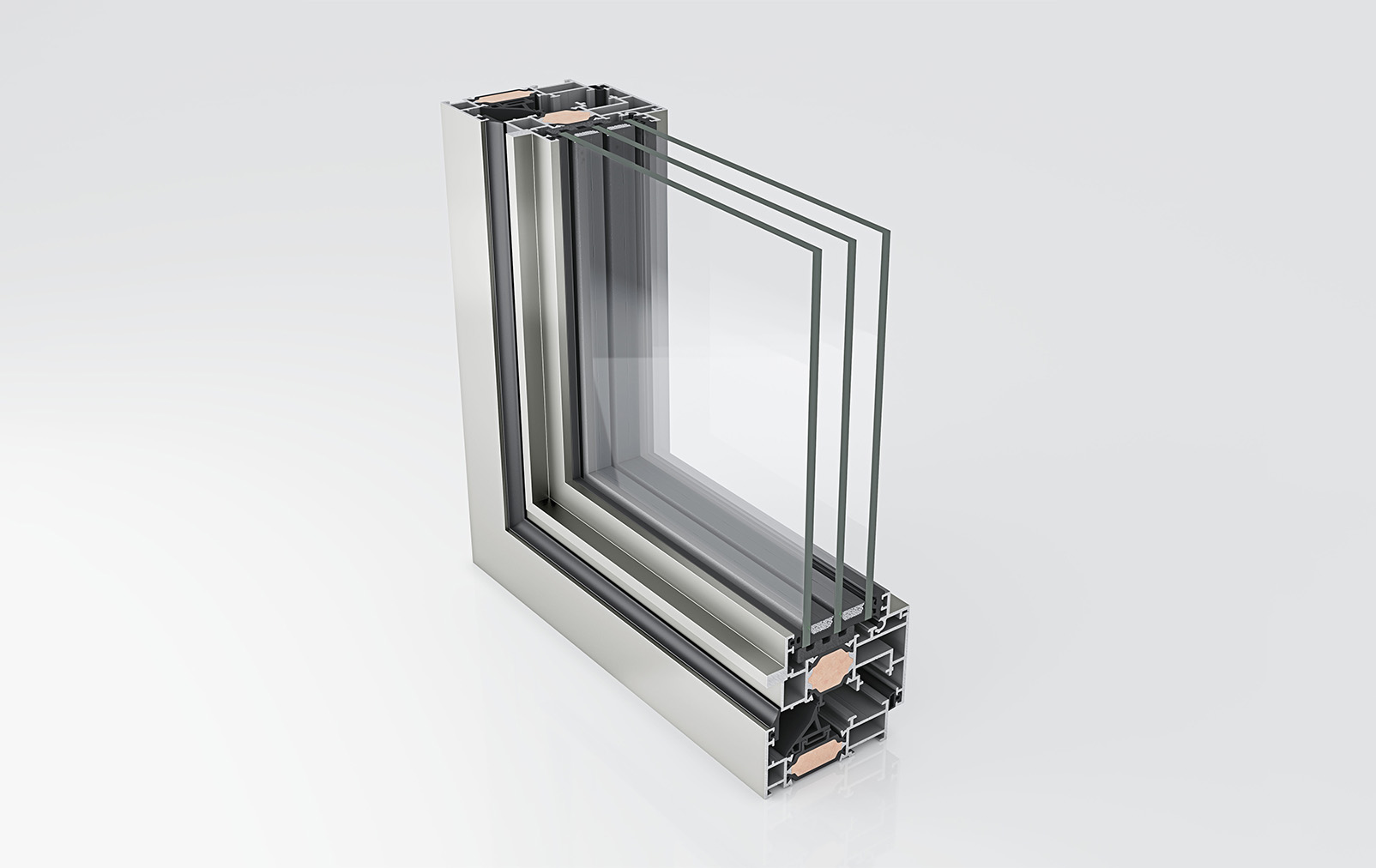

THE TECHNOLOGY
It's a feeling. It's precious. What should be kept outside -noise, water, wind- is kept outside. What's inside is safe and sound. This is where we set our boundaries and keep them intact
The Thermal Insulation
You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.
-
ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY
The innovation, ELVIAL I² Technology, is applied on all system’s profiles. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system’s energy performance [Uf] by up to 38%.
Learn more about ELVIAL I² Innovation. -
32mm INSULATING BARS
Wide insulating bars of 32mm with glass fiber re-enforcement 25%, are applied to all system profiles, offering high thermal insulation levels and extra rigidity. -
CO-EXTRUDED GASKET
Co-extruded gasket is used in the perimetrical area of the window, improving energy performance. -
FOAM INSULATING PROFILE
Foam insulating profile is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.
The Advanced Sealing System
We have developed the Advanced Sealing System to water-proof any construction. Vulcanization and assembly render all parts of the window impermeable.
-
OPTIMAL 3-LEVEL WATERPROOFING
Optimal 3-level waterproofing with specially designed EPDM and co-extruded gaskets. -
EPDM GASKET CORNERS
Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions. -
EPDM END CUPS FOR ADJOINING PROFILE
The EPDM adjoining profile end cup with "clever" clips ensures excellent water proof performance, even on double sash typologies.
Design
System Depth
67mm
Min Face Height
Frame-Sash
Frame-Sash
75.2mm
Min Face Width
Middle Mullion
Middle Mullion
112.7mm
PROPERTIES
Max Sash Height
2.400mm
Max Sash Width
1.200mm
Max Sash Weight
150kg
Max Glass thickness
46mm
Uf Value (≥)
1.4 W/m²K
Air Permeability
Class 4
Water Tightness
E900
Wind Load Resistance
C5/B5
.gif){kind=icon}
SINGLE SASH FIXED WINDOW
SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW
SINGLE SASH TILT & TURN WINDOW
TOP HUNG WINDOW
DOUBLE SASH OPENING WINDOW
DOUBLE SASH TILT & TURN WINDOW
DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL WITH TILT & TURN WINDOW
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
SINGLE SASH OPENING WINDOW
DOUBLE SASH TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
