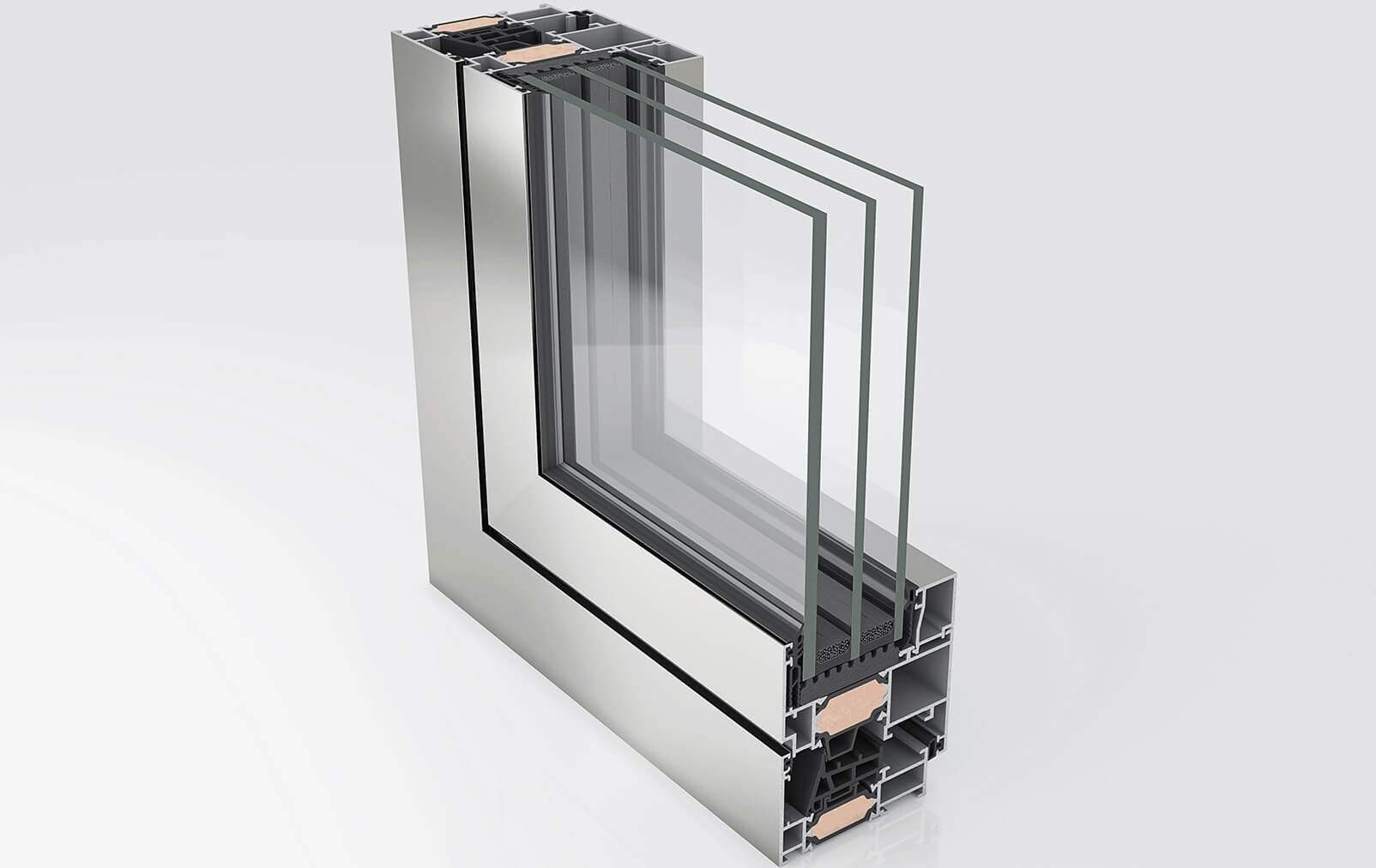

ESSENCE W67 HI² CE

This solution combines elegant style and optimal technologies to open new possibilities for you and your clients. It is tailored to ensure superior implementation according to your project specs.
ESSENCE W67 HI² CE
6
7
THE DESIGN
THE DESIGN

Your unique ideas and our flawless solutions are guaranteed to make any project you undertake a work of reference you will be proud of.

ATTENTION TO DETAIL

SAME LEVEL APPEARANCE INWARDS

Ultimate same level appearance on the inner side of the window, thanks to the application of a specially designed frame. Ideally featured to the application of a hidden tilt and turn mechanism.

FIRM & MINIMAL

Specially designed T profiles with inner reinforcement upping of just 10mm, ideal for sturdy constructions with wide openings, consistent with modern architectural trends.
SAME LEVEL APPEARANCE INWARDS
FIRM & MINIMAL

EXTRA FEATURES

CONCEALED COMPONENTS

Form follows function, they said. We glorified form by concealing the functional components.

HIDDEN HINGES

Hinges to open or tilt that go undetected.

MOVE WITHOUT LIMITATIONS

The CE edition allows for 180º opening, even in hidden hinge mechanism.

HANDLES

Handles so sophisticated that render grace to industrial design.
CONCEALED COMPONENTS
HIDDEN HINGES
MOVE WITHOUT LIMITATIONS
HANDLES
THE TECHNOLOGY
THE TECHNOLOGY

It's a feeling. It's precious. What should be kept outside -noise, water, wind- is kept outside. What's inside is safe and sound. This is where we set our boundaries and keep them intact. The performance of ESSENCE W67 HI² on all factors affecting interior environment is outstanding and certified by ift Rosenheim Institute in Germany.

THERMAL INSULATION

You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.

  • ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY

    The innovation, ELVIAL I² Technology, is applied on all system’s profiles. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system’s energy performance [Uf] by up to 38%.
    Learn more about ELVIAL I² Innovation.

  • UP TO 32mm INSULATING BARS

    Wide insulating bars with 25% glass fibre reinforcement of 32mm, are applied to all system profiles, offering high thermal insulation levels and extra rigidity.

  • CO-EXTRUDED GASKET

    Co-extruded gasket is used in the perimetrical area of the window, improving energy performance.

  • FOAM INSULATING PROFILE

    Foam insulating profile is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.

THE ADVANCED SEALING SYSTEM

We have developed the Advanced Sealing System to waterproof any construction. Vulcanization and assembly render all parts of the window impermeable.

  • OPTIMAL 3-LEVEL WATERPROOFING

    Optimal 3-level waterproofing with specially designed EPDM and co-extruded gaskets.

  • EPDM GASKET CORNERS

    Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions.

  • EPDM END CAPS FOR ADJOINING PROFILE

    The EPDM adjoining profile end cap with "clever" clips ensures excellent waterproof performance, even on double sash typologies.

DURABILITY FOR A LIFE TIME

It's details like this that fulfill the highest requirements in terms of durability. As time puts this profile to its test, you will enjoy its endurance and benefits.

  • SUPPORT FOR GLAZING LOAD TRANSFER

    This kind of support transfers the weight of the glass to the inner side of the window sash where all the functional elements of the mechanism are positioned. This way excellent functionality and smooth operation of the window are ensured for a life time, regardless οf the weight of the glass.

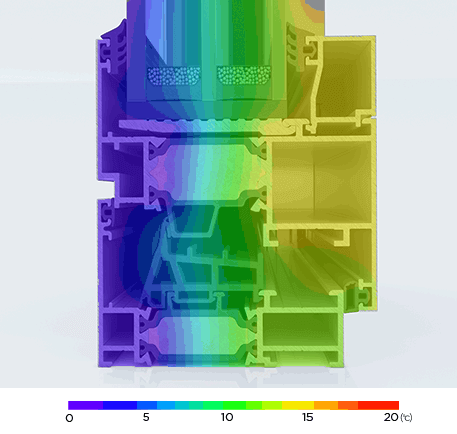

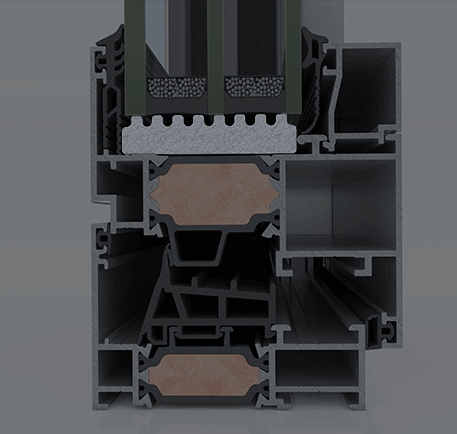

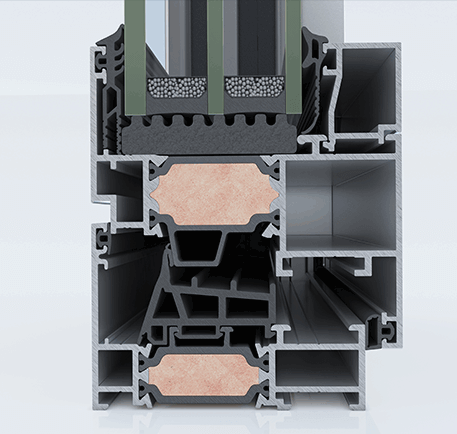

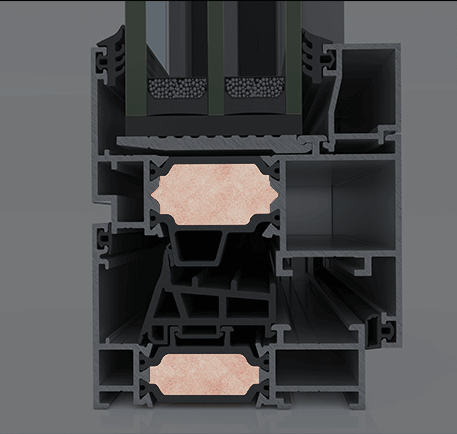

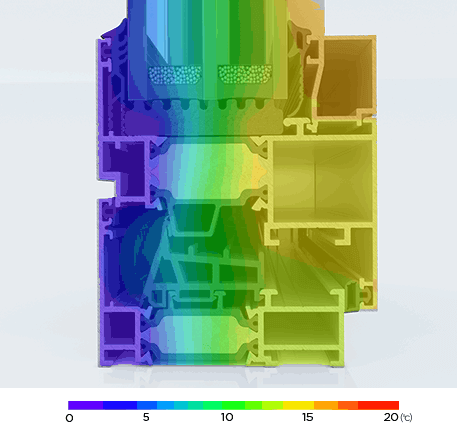

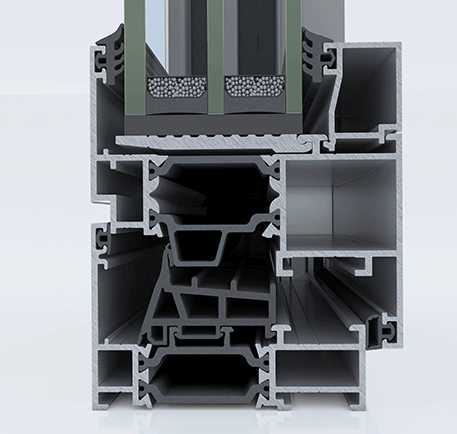

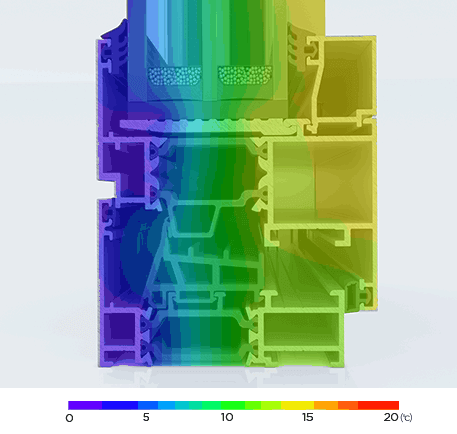

ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
LEVEL 1 LEVEL 2 LEVEL 3
Uf ≥ 1.8 W/m²K
Uf ≥ 1.8 W/m²K
Uf ≥ 1.2 W/m²K
Uf ≥ 1.2 W/m²K
Uf ≥ 1.1 W/m²K
Uf ≥ 1.1 W/m²K
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
LEVEL 1 LEVEL 2 LEVEL 3
Uf ≥ 1.8 W/m²K
Uf ≥ 1.8 W/m²K
Uf ≥ 1.2 W/m²K
Uf ≥ 1.2 W/m²K
Uf ≥ 1.1 W/m²K
Uf ≥ 1.1 W/m²K
Design
System Depth
67mm
Min Face Height
Frame-Sash
89mm
Min Face Width
Middle Mullion
154mm
PROPERTIES
Max Sash Height
2.800mm
Max Sash Width
1.400mm
Max Sash Weight
180kg
Max Glass thickness
60mm
Uf Value (≥)
1.1 W/m²K
Air Permeability
Class 4
Watertightness
E1350
Resistance to Wind Load
C5/B5
Operating Forces
Class 1
Mechanical Properties
Class 4
Sound Reduction
44dB
SINGLE SASH FIXED WINDOW

SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW

SINGLE SASH TILT & TURN WINDOW

TOP HUNG WINDOW

DOUBLE SASH OPENING WINDOW

DOUBLE SASH TILT & TURN WINDOW

DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL WITH TILT & TURN WINDOW
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
SINGLE SASH OPENING WINDOW

DOUBLE SASH TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION

The minimal and elegant appearance of the system enhances the view, while inside it incorporates ELVIAL I² innovation for outstanding energy efficiency. The advanced sealing system acts as an unbroken shield against weather conditions, keeping your space fully protected and comfortable. By choosing this hinged aluminum frame system, you ensure a construction with long-term durability and high performance, ideally meeting the demands of any modern home or commercial space.

GET ACCESS
Are your Interested for more technical information about this product? Contact us and gain access to Technical Catalogue, DWG, BIM, Test Reports.
Get in touch
Get a Quote
Tell us what you are looking for and we will guide you in choosing the ideal aluminum frame.
