ICONIC W77ST AI²

More often than not style is an exercise in equilibrium. Like walking on a very fine line. This is the best asset of this system. The lines are so fine that render the detailing an expert demonstration of balance. This along with the advanced technologies featured makes up for one thing: perfection. Make it happen.
ICONIC W77ST AI²
7
7
Elvial - THE DESIGN
Elvial - THE DESIGN
Elvial - THE DESIGN
Elvial - THE DESIGN
Elvial - THE DESIGN
Elvial - THE DESIGN
THE DESIGN

It is our firm belief that the window is always part of the interior design concept. In these cases you might need something extra; extra character, extra bravura, extra attitude. You can have it with Iconic W77ST AI².

A clean Minimal Design, a fascinating industrial look or a retro feeling?

Queue your personal taste.
Take it to the next level

Attention to detail

MAXIMUM VIEW

The conjunction of sashes never looked sleeker. The integrated adjoining profile minimizes the central vertical profile view to just 89mm and the perimetrical contour to 68mm only. Boundaries are being eliminated.

INGENUITY

God is in the details, they say. Change one detail and see a new creation. That is what we did and created a different perspective. Now the inner contour of the window is no longer plain-looking. The effect is iconic. Ready to become a part of a new creation.

FIRM & MINIMAL

Specially designed T - profiles with inner reinforcement upping of just 10mm, ideal for sturdy constructions with wide openings, consistent with modern architectural trends.

INDUSTRIAL DESIGN WINDOW WALLS

This exclusively developed and uniquely designed collection of profiles allows you to create window walls with an exemplary industrial look and feel.

EXTRA FEATURES

Form follows function, they said. We glorified form by concealing the functional components.

Hinges to open or tilt that go undetected.

The CE edition allows for 180o opening.

Handles so sophisticated that render grace to industrial design.

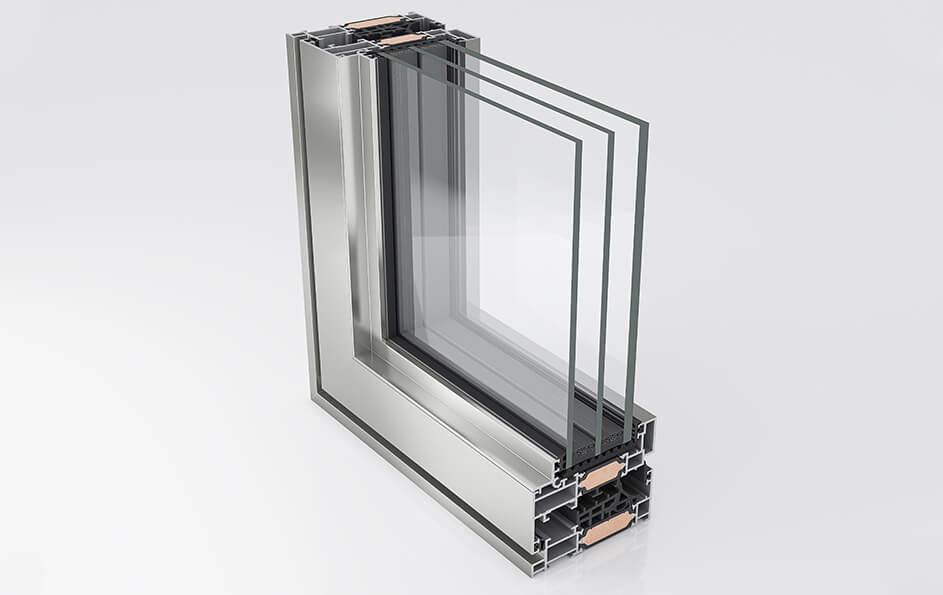

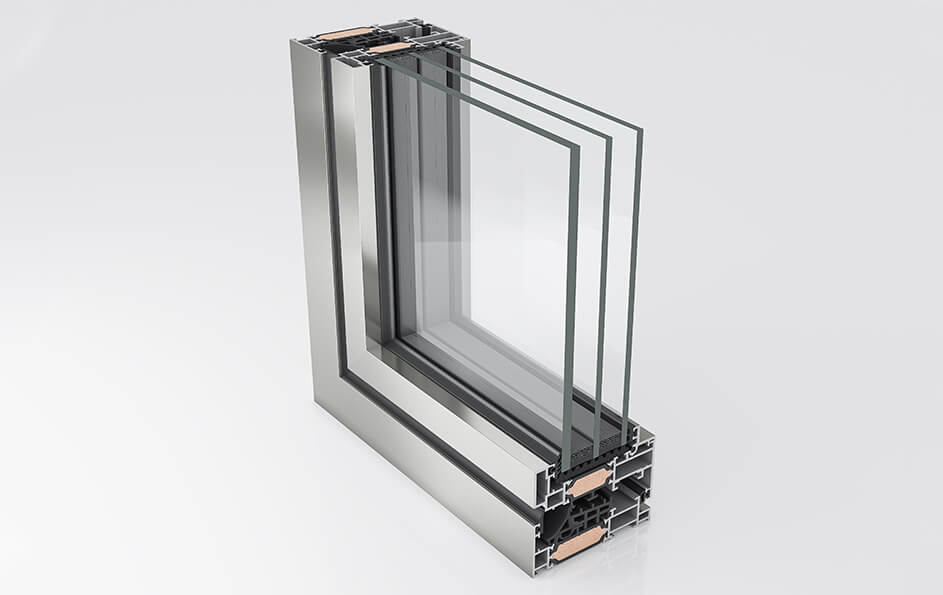

THE TECHNOLOGY
THE TECHNOLOGY
THE TECHNOLOGY

We made it incomparable in terms of energy performance, inviolable and impermeable. We made it complete and versatile so you can make it wonderful.

The Thermal Insulation

You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.
  • ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY

    The innovation, ELVIAL I² Technology, is applied on all system’s profiles. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system’s energy performance [Uf] by up to 38%. Learn more about ELVIAL I² Innovation.
  • UP TO 42mm INSULATING BARS

    Wide insulating bars of up to 42mm with glass fiber re-enforcement 25%, are applied to all system profiles, adding extra thermal insulation of PASSIVE HOUSE, level I category and extra rigidity.
  • CO-EXTRUDED GASKETS

    Co-extruded gaskets are used in the central and perimetrical area of the window, optimizing the isothermal flows.
  • FOAM INSULATING PROFILE

    Foam insulating profile is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.

The Advanced Sealing System

We have developed the Advanced Sealing System to water-proof any construction. Vulcanization and assembly render all parts of the window impermeable.
  • OPTIMAL 3-LEVEL WATERPROOFING

    Optimal 3-level waterproofing with specially designed EPDM and co-extruded gaskets.
  • EPDM GASKET CORNERS

    Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions.
  • EPDM END CUPS FOR ADJOINING PROFILE

    The EPDM adjoining profile end cup with "clever" clips ensures excellent water proof performance, even on double sash typologies.

Durability For A Life Time

It's details like this that fulfill the highest requirements in terms of durability. As time puts this profile to its test, you will enjoy its endurance and benefits.
  • SUPPORT FOR GLAZING LOAD TRANSFER

    This kind of support transfers the weight of the glass to the inner side of the window sash where all the functional elements of the mechanism are positioned.
    This way excellent functionality and smooth operation of the window are ensured for a life time, regardless οf the weight of the glass.
ENERGY LEVELS

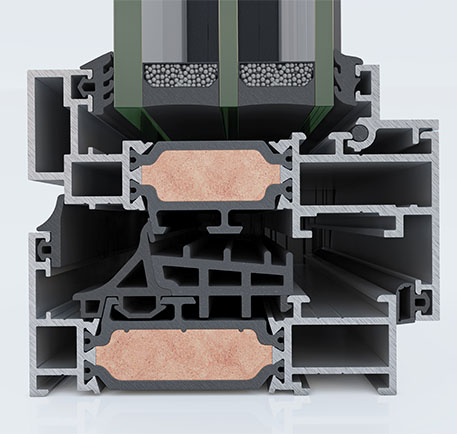

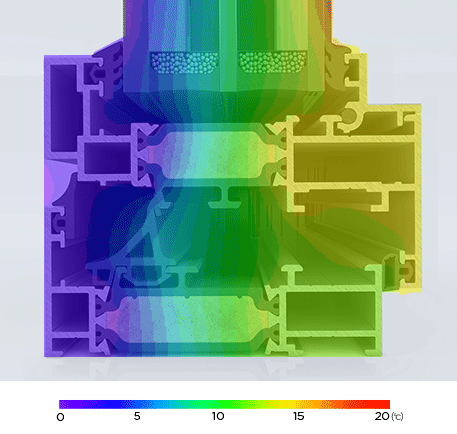

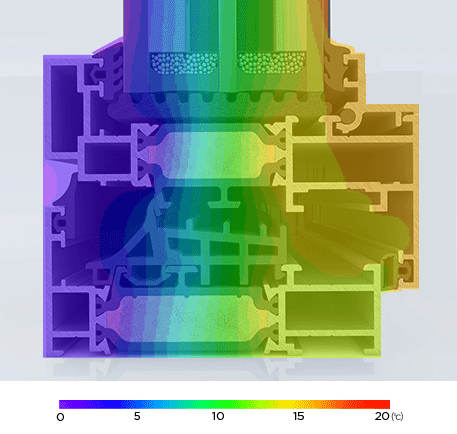

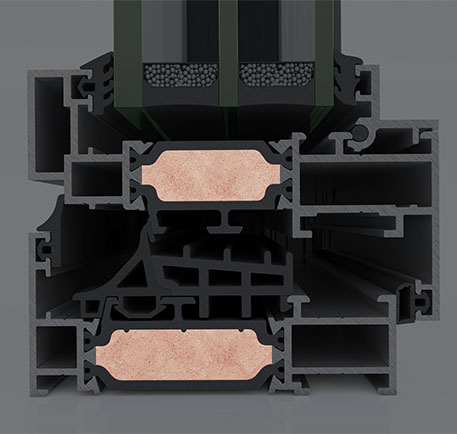

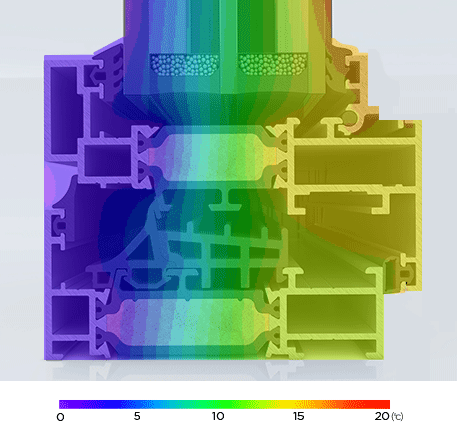

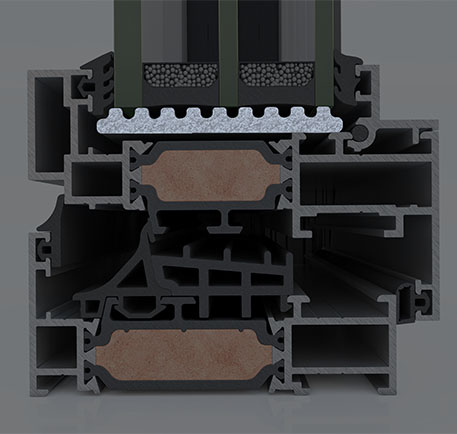

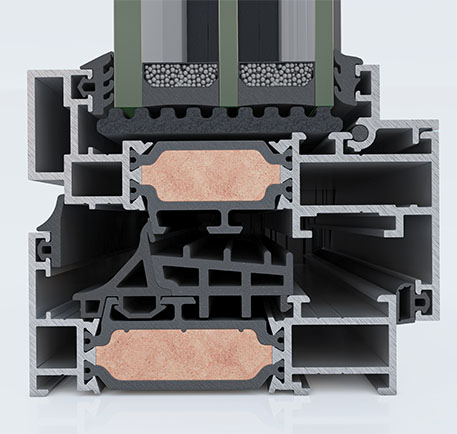

Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.

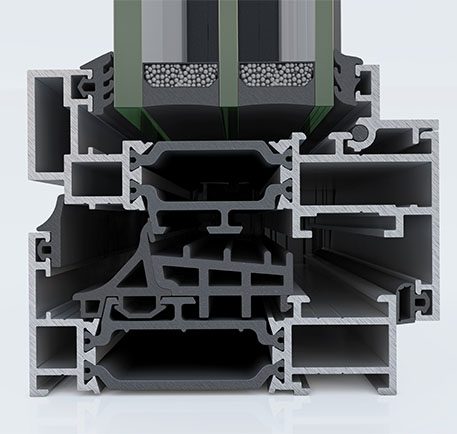

Uf ≥ 2.2 W/m²K
Uf ≥ 2.2 W/m²K
Uf ≥ 1.7 W/m²K
Uf ≥ 1.7 W/m²K
Uf ≥ 1.2 W/m²K
Uf ≥ 1.2 W/m²K
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are three energy level variables to this product so you can devise the best answer to any demand.
Uf ≥ 2.2 W/m²K
Uf ≥ 2.2 W/m²K
Uf ≥ 1.7 W/m²
Uf ≥ 1.7 W/m²
Uf ≥ 1.2 W/m²K
Uf ≥ 1.2 W/m²K
Design
System Depth
77mm
Min Face Height
Frame-Sash
68mm
Min Face Width
Middle Mullion
89mm
PROPERTIES
Max Sash Height
2.400mm
Max Sash Width
1.200mm
Max Sash Weight
150kg
Max Glass thickness
56mm
Uf Value (≥)
1.2 W/m²K
Air Permeability
Class 4
Water Tightness
9A
Wind Load Resistance
C4 / B4
SINGLE SASH FIXED WINDOW

SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW

SINGLE SASH TILT & TURN WINDOW

TOP HUNG WINDOW

DOUBLE SASH OPENING WINDOW

DOUBLE SASH TILT & TURN WINDOW

DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL WITH TILT & TURN WINDOW
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
SINGLE SASH OPENING WINDOW

DOUBLE SASH TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
GET ACCESS
Are your Interested for more technical information about this product? Contact us and gain access to Technical Catalogue, DWG, BIM, Test Reports.
